ROTARY VANE WHEEL MULTI-JET DRY TYPE WATER METER
Classification:
Keyword: Water Meters
Detailed
Model:LXSG-15～25mm
Feature:
1.Dry-dial,Magnetic drive,Resistance to exterior magnet interference
2.Multi-jet
3.Selected high quality materials for steady & reliable characteristic
4.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
5.Measuring accuracy conform to ISO 4064 class B Standard
6.Universal use.Easy for interchange & maintenance
Description
This range of water meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit,passing through the pipeline.
Working condition:
Cold water temperature: ≤40℃ , Hot water temperature: ≤90℃
Water pressure:≤1Mpa
Main technical data：
|
Meter Size (mm)
|
Class |
Overload Flow |
Nominal Flow |
Transitional Flow |
Min Flow |
Min Reading |
Max Reading
|
|
m3/h |
1/h |
m3 |
|||||
|
15 |
B |
3 |
1.5 |
120 |
30 |
0.0001 |
99999 |
|
20 |
B |
5 |
2.5 |
200 |
50 |
0.0001 |
99999 |
|
25 |
B |
7 |
3.5 |
280 |
70 |
0.0001 |
99999 |

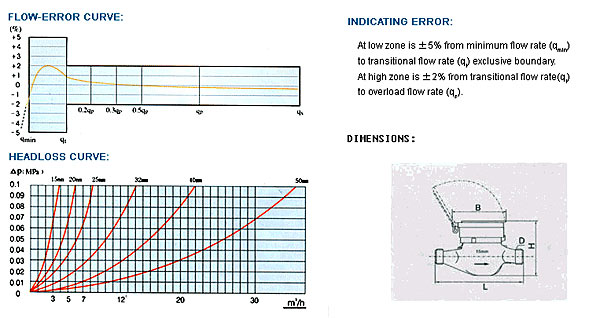

Dimensions and weight：
|
Meter Size (mm)
|
Length L |
Width B |
Height H |
Connecting Thread D |
Weight (kg) |
|
mm |
|||||
|
15 |
165 |
90 |
104 |
G 3/4 B |
0.7 |
|
20 |
190/195 |
99 |
106 |
G 1 B |
0.8 |
|
25 |
260/225 |
103 |
114 |
G 1 1/4 B |
1.0 |
