SINGLE JET DRY TYPE VANE WHEEL
Classification:
Keyword: Water Meters
Detailed
Model:LXSG-15～25MM
Feature：
1.Dry-dial,Magnetic drive,Resistance to exterior magnet interference
2.Single-jet
3.Selected high quality materials for steady & reliable characteristic
4.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
5.Measuring accuracy conform to ISO 4064 class B Standard
6.Small in size and Light in weight
Description：
This range of water meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit,passing through the pipeline
Working Condition：
Water temperature: ≤40℃for cold potable water meter
Water temperature: ≤90℃for hot potable water meter
pressure: ≤1Mpa
Main technical data
|
Meter Size (mm)
|
Class |
Overload Flow |
Nominal Flow |
Transitional Flow |
Min Flow |
Min Reading |
Max Reading |
|
m3/h |
1/h |
m3 |
|||||
|
13 |
B |
3 |
1.5 |
120 |
30 |
0.001 |
99999 |
|
20 |
B |
5 |
2.5 |
200 |
50 |
0.001 |
99999 |
|
25 |
B |
7 |
3.5 |
280 |
70 |
0.001 |
99999 |

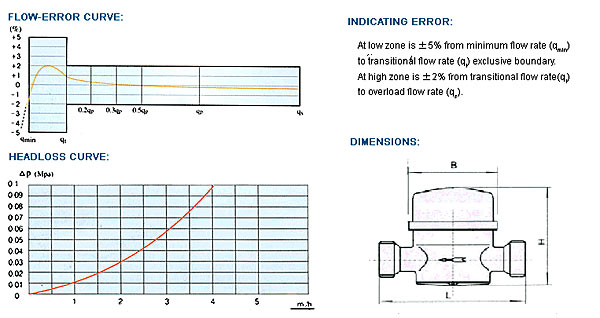

Dimensions and weight
|
Meter Size (mm) |
Length L |
Width B |
Height H |
Connecting Thread D |
Weight (kg) |
|
mm |
|||||
|
13 |
110 |
76 |
80 |
G 3/4 B |
0.6 |
|
20 |
130 |
80 |
80 |
G 1 B |
0.8 |
|
25 |
160 |
85 |
93 |
G1 1/4 B |
1.1 |
